1/72 Scratchbuilt Star Trek Penguin

by Dan Duna

--------------------

Photo 1

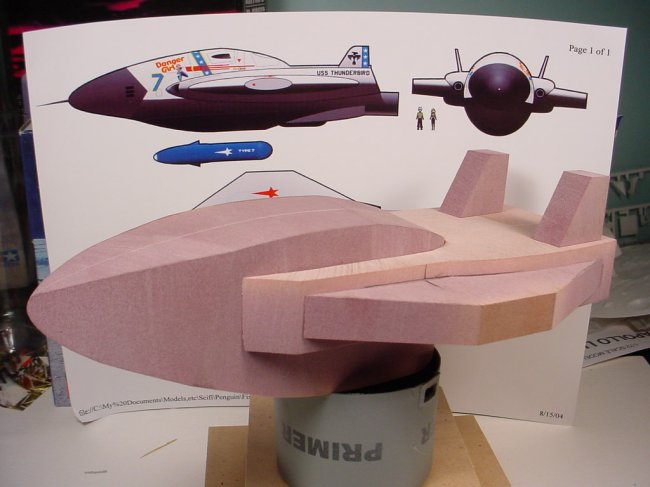

This is the second of my Star Trek scratchbuilds designed by Maseo Okazaki of The Starfleet Museum website. It is made of RENfoam and took a little over two weeks from start to finish. Photo 3 shows the initial foam pieces cut from paper planform and side templates.  The fighter was shaped with a pneumatic sander and hand sanding with 80, 120 and 220 grit sandpaper.

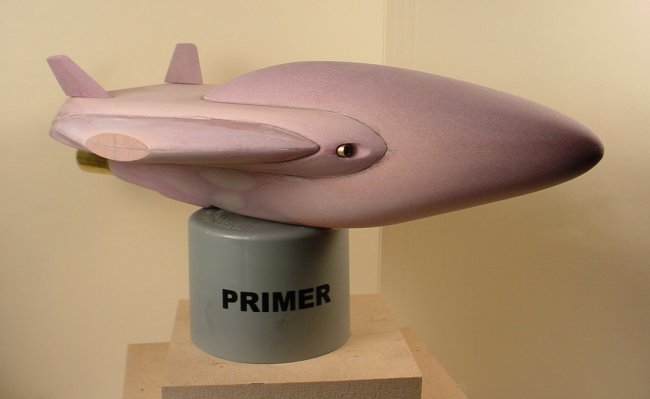

Photos 4 and 5 show it contoured and glued together with CA.  Brass tube was used for the exhaust nozzles and guns.  Fins were pinned on the fuselage.

Click on images below to see larger images

Photo 3

Photo 4

Photo 5

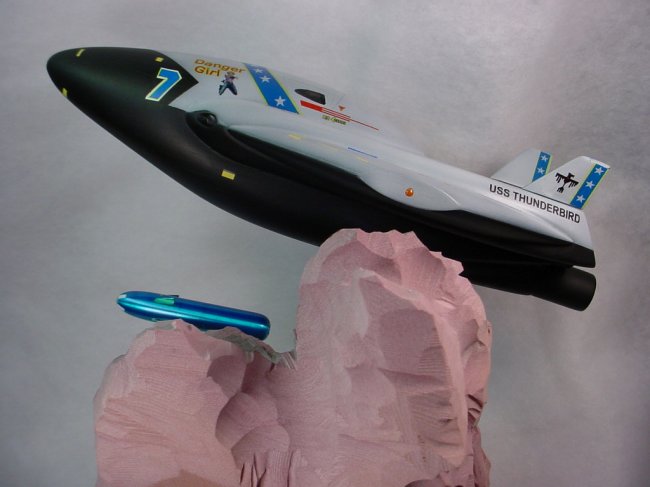

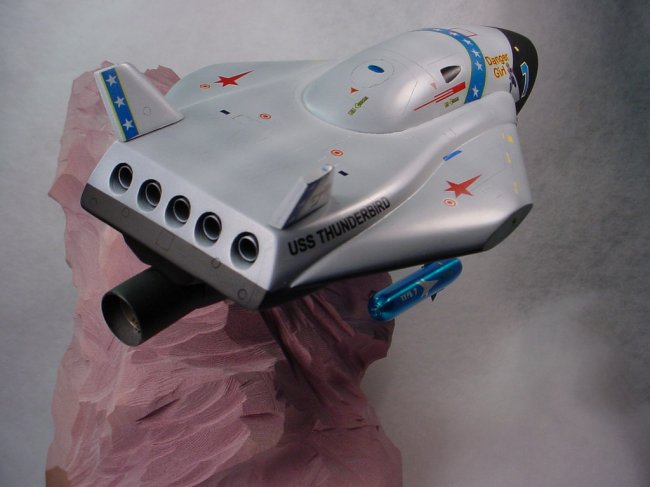

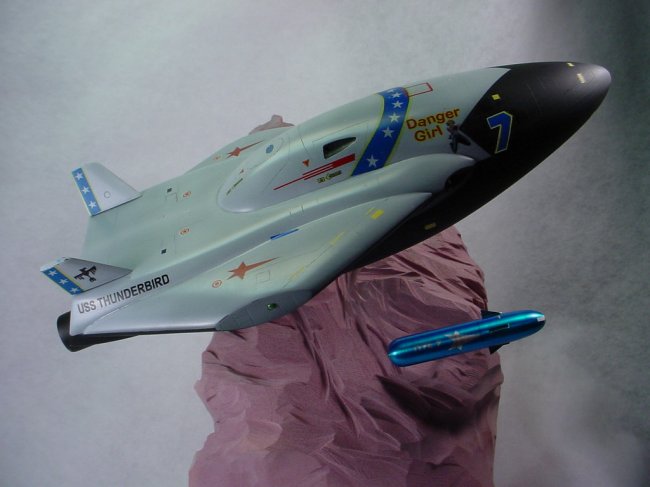

Photos 1, 2, 7 and 8 show the final shots of the finished model. I used Tamiya paints for the ship and Photon torpedo ( turned aluminum with brass fins ). My good friend Steve Simmons scanned, altered and laser printed the decals for me, and did a great job to add the finishing touch to the Penguin.

Photo 2

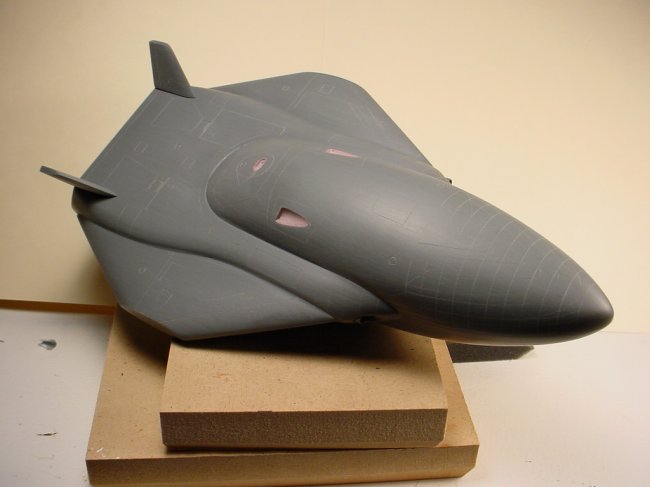

Photo 6 shows the model primed and panel marked, as well as  the cabin windows carved out.  I used laquer primer to seal the foam as well as being a basecoat for the final colors.  The rock cliffs behind the Penguin is a solid chunk of carved Renfoam.   I used 1/8" dia. brass tubes to suspend the ship and torpedo to simulate flight.

Dan

Click on images below to see larger images

Photo 6

Photo 7

Photo 8

Photos and text © by Dan Duna
