Eduard Model Accessories

1/72 Hawk 100 series interior photo etch detail set

Product # SS726 for Airfix kit

Product Article by Steve Bamford on Apr 13 2021

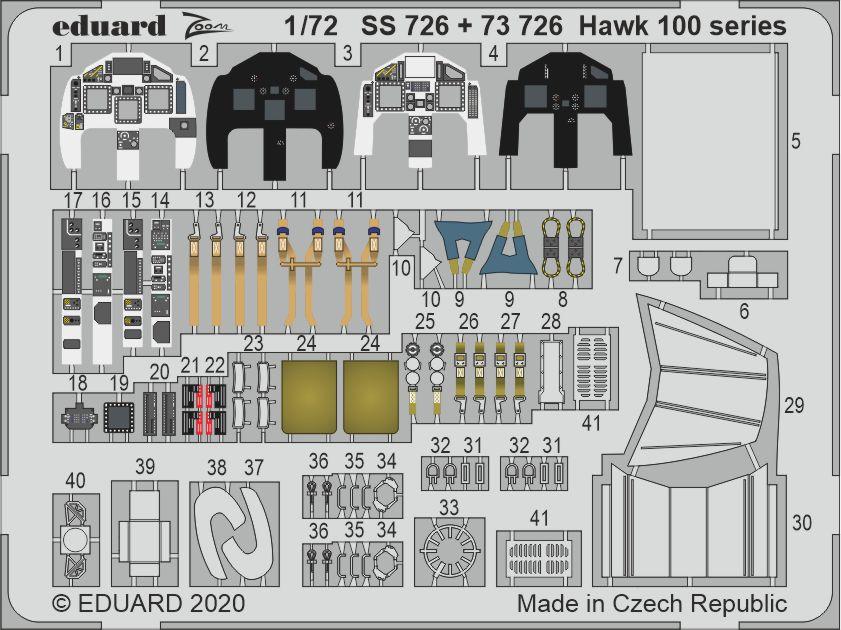

This pre-painted photo etch detail set from Eduard is part of the Zoom series of photo etch sets and is available directly from Eduard Model AccessoriesThis is mostly a cockpit detail set designed for the 1/72 Airfix Hawk 100 series.  The parts include some pre-painted parts for the multi-layered instrument panel etc, seatbelts, ejection seat handles, side consoles for front and rear cockpit etc.  You also get a few parts for landing gear and fuselage exterior and handles etc for the interior of the canopy and HUD frame with acetate for the HUD glass etc.


Click on images below to see larger images

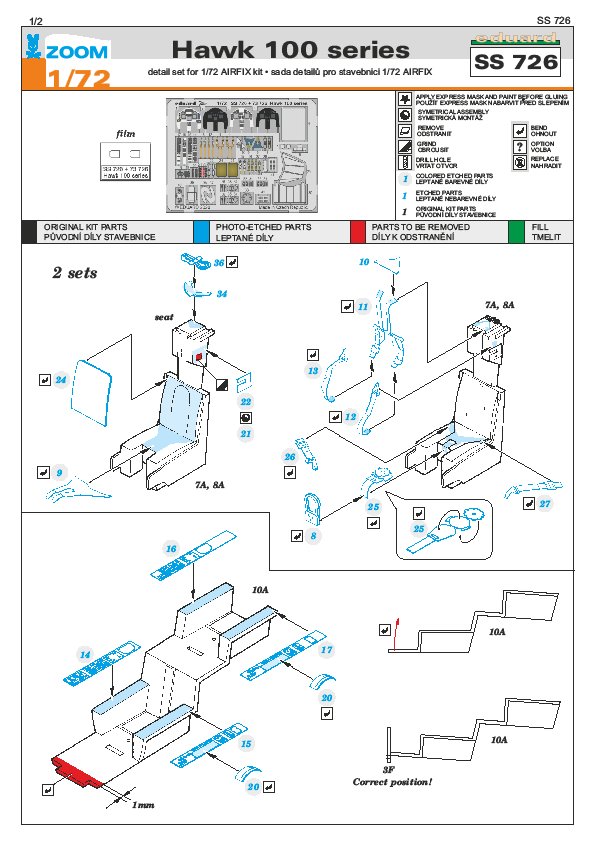

There are 2 pages of instruction in the usual line drawing format that Eduard is famous for and which are so easy to follow.  You will be required to cut away detail on the kit parts to fit these photo etched parts, but this is indicated on the instruction sheets.

You will be required to fold the photoetch in this set, but if you have one of the Hold & Fold photo etch benders from The Small Shop, then this will be an easy process.  They have a variety of benders for sharp corners as well as rounded corners and in many different sizes.

If you attach photo etch parts to clear styrene canopy, then the CA glue fumes will fog the clear styrene.  To avoid fogging the clear styrene from CA glue fumes you can coat the clear styrene parts in Future to provide a barrier or use a different adhesive such as white glue or Future itself as a glue.  Future and white glue are effective to use to glue photo etch parts to clear styrene, but they do take a long time to dry.

The Hawk 100 series trainer jet has a large canopy that shows the cockpit very well which makes this set a great addition to the Airfix Hawk 100 series model kit.

You can buy this pre-painted photo etch detail set and thousands of other items directly from Eduard Model Accessories.

Steve Bamford

Photos and text by Steve Bamford
