1/144 Revell Germany Boeing 767 Conversion

Gallery Article by Max Tollens Jr. on Oct 30 2009

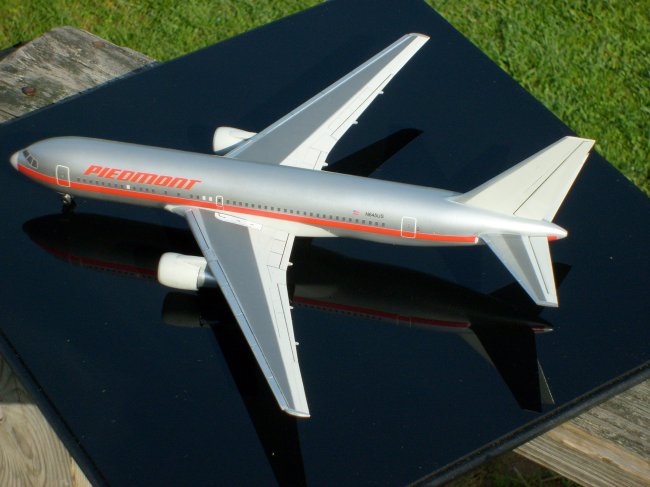

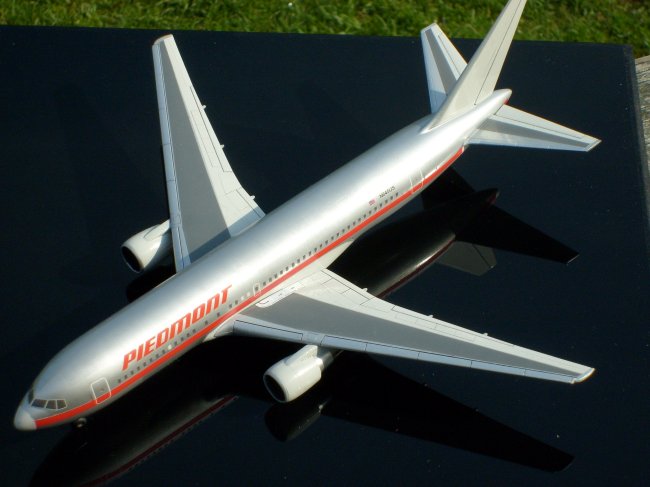

This is the Revell Germany 767-300, cut down to a -200 size by removal of a section fore and aft of the wing per side.  I referenced Boeing's site for the dimensions of the -200 and -300 fuselages and proceeded to cut.  I made an error and didn't take into consideration the measurement from the nose to the aft end of the tail, thus my conversion is .75 inches too long (equivalent to 9 scale feet).  Not too bad considering it's the first airliner I've cut down!

Click on images below to see larger images



The kit's windows were filled from the inside with sheet styrene then filled from the outside with superglue; the seams where the fuselage was dissected were reinforced with sheet styrene and I used superglue to fill the gaps.  The tail bumper below the rear was cut off and filled as this was only installed on the -300 series.  Once the gaps were filled, the entire model was primed with Mr. Surfacer out of the spray can in preparation for the metal finish.

I used Alclad II Aluminum for the airframe's natural metal finish; on the engine's hot areas I used Alclad II chrome and exhaust over a gloss black base coat.  The gray on the airframe was Model Master Voodoo Gray to sub for the Boeing gray; on the wings I used Model Master Gunship Gray 36118 to represent Coroguard in the centers of the wing and horizontal stabs.  The decals are Draw Decals' Piedmont/US Air set, they go on great and the carrier film virtually disappears after they've dried.  I did have trouble with the decal going around the nose; I fixed that by cutting it around the radome and painting the radome so it looks like a replacement nose.  I like the look of the 767-200 but the nosegear looks too big for the fuselage; the front of the jet doesn't look as "porky" as the reference pictures I saw on http://www.airliners.net.  This was a fun build, challenging for a hack builder like me; I've already started another Revell 767 and it's just about on dimension wise (unlike this one!).  I improved my skills in conversions and working with NMF; I now have a heavy to add to my Piedmont/US Airways heritage collection, even if it does dwarf the 2 previously built 737-400 Minicraft kits.

Max Tollens Jr.

Photos and text © by Max Tollens Jr.
