1/72 AZmodels Let L-200 Morava

Gallery Article by Carmel J. Attard on Feb 4 2014





Let L-200 Morava

History

The Let L-200 was a twin-engine 4/5 seat business aircraft designed by Ladislav Smrcek. The L-200 prototype flew for the first time on the 8th of April 1957. A low wing monoplane with fixed wing tip fuel tanks and had a twin tail unit.

The landing gear was a retractable tricycle type and was powered by two160 hp Walter Minor 6-111 inline engines. The production model was generally similar to the prototype and had more powerful M337 engines. The final production version was L-200D which differed by incorporating improved systems with strengthened landing gear, 3-blade constant speed propellers V-506, modified in accordance to Russian Aeroflot demands where many being supplied for this airline operations in the Moscow and Ukrainian Directorate Areas.

In all 367 L-200 s were built by 1964, including three prototypes and 197 L-200D. 8 early L-200A and the prototype were converted to L-200D as well. Libis in Yugoslavia manufactured 5 Aircraft from parts. 4 Let L-200Ds were delivered from the manufacturer in 1964 for the utility transport role with the Bulgarian Air Force. Serial 05 was delivered in 1964 and stored at Dubroslavtzi in 1995, Serial 10 No 171310 delivered in 1964 and preserved at Plovdiv/Krumovo, October 2004, Serial 20 No 171202 delivered in 1964 and stored at Plovdiv/Krumovo, October 2004 in Production of the L-200 Morava ended in 1968.

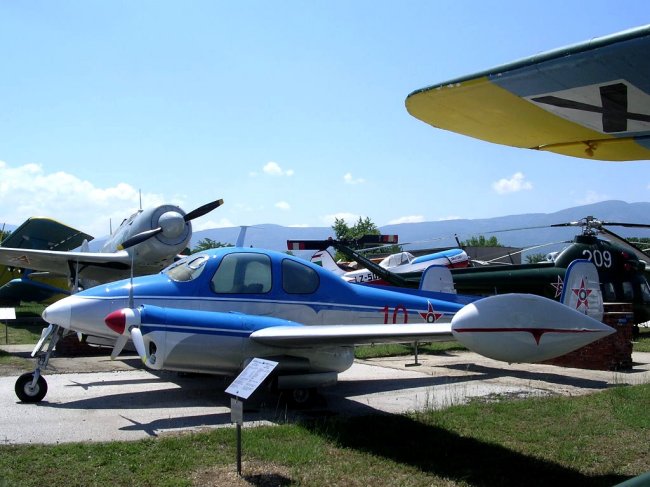

On 18th June 2013 I visited the open air Krumovo museum in Plovdiv and there I spotted the rare exhibit L-200D serial 10 in freshly renovated livery with BAF earlier style star insignia markings. I noticed that there was a slight variation in the narrow trim line that runs along the fuselage and along the engine nacelles. This was now also bright medium blue like the rest of the upper fuselage and not dark blue as it was in earlier times as it appears in the AZ kit decal…. see photos



Click on images below to see larger images

The Kit: Let L-200 Morava
Make and kit no: Azmodels, AZ7352
Scale: 1/72
Cost: 16 Euro
Type: injection molded, with resin and brass etch detail parts. Decals cover Czech, Bulgarian, U.S, and Indonesian Air Forces.

Kit
Molded in light grey plastic containing fine engraved panel lines originating from AZ model tooling. Kit comes in three frets containing fuselage, engines and tail plane parts on one, wings, undercarriage and tail fin on another. Transparent parts consisting of 6 clear canopy items come on another fret. Kit also contains resin parts comprising of wing tip tanks, engine fronts, main wheels, and cockpit floor with cast on seats. A photo-etch fret contains finer detail parts such as nose wheel door, rudder pedals and instruments, climbing steps, control wheels, main wheels’ doors, different shaped aerials and tailskid wire.

Construction
Construction is straight forward starting with the cockpit instruments and interior which after pre-painting and assembly these were placed aside. Engines come in 5 parts each and are dealt with in a similar fashion. A good feature with this kit is that one can build the early L-200A version that had two bladed propellers or the L-200D with three bladed propellers. This was the basic exterior difference between the two.

The wings consisted of two upper and two lower parts and a separate molding for underside of engines. Everything went together well and fit was good on most parts. Only a little filler was needed between fuselage and wings. Construction took very little time but there were one or two hidden surprises that were worth noting. The kit is tail heavy and weight was added to nose and spaces in the engine nacelles separate forward parts. The engine fronts are resin and when these were fixed with the rest of the engines, filler was needed for smooth fairing.

The cockpit canopy itself needed to be dry fit so that small fins are removed by scraping or smooth filing. I then used Klear to fix the clear parts permanently and without spoiling the clear transparencies. I also added two crew figures from spares box to the front seats and straps to all seats.

When it comes to the stage of assembling the engine nacelles and adding the air intake scoops and exhaust pipes the instructions are confusing. For instance the front view on sketch at stage 10 the air intake part No18 appears on the inner wall of each nacelle while plan view on last page of instructions shows them on the outside in each case in plan view. This in fact should be on starboard side on each nacelle. The same applies for the engine exhaust. The instructions show that they are fitted on the outside of each nacelle. The exhausts should in fact be positioned on the port side of each engine nacelle.

Painting and decals

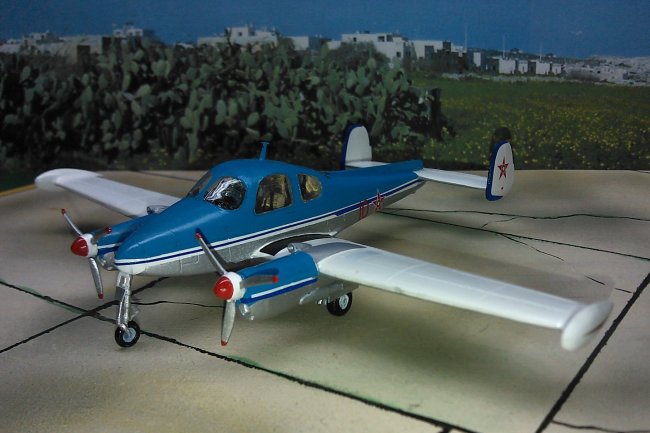

All windows were covered with masking tape and the kit given a coat of semi gloss white overall. The upper fuselage was then painted in acrylic Humbrol bright light blue that seemed to be the exact match to the real paintwork I have seen on the L-200 at Krumovo. The upper wings and tail planes were semi gloss white while the rest of the fuselage and lower of wings in silver/metal finish. Wheel wells were dark grey. Kit was given an airbrush coat of Klear. Decals were of top quality and adhered very well.

Conclusion
All in all this was a fairly easy kit build of a subject not so popular. The kit is also a bit overprized but would generally appeal to many particularly those keen on modern types in Bulgarian Air Force and makes a change from the usual Mig 17, 21 and 23 etc. that are normally associated with this air force in post war era.

Carmel J. Attard
