1/72 Hasegawa Hellcat Mk I

800 Squadron  Royal Navy

by PS

--------------------

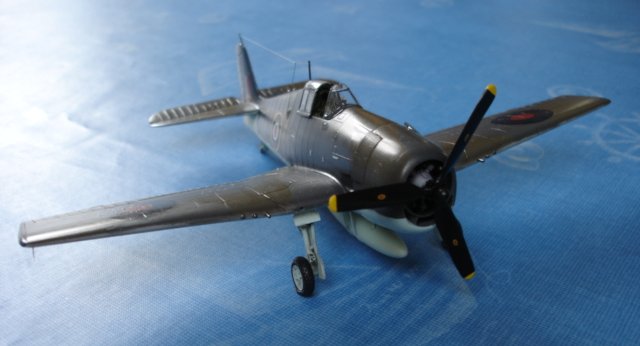

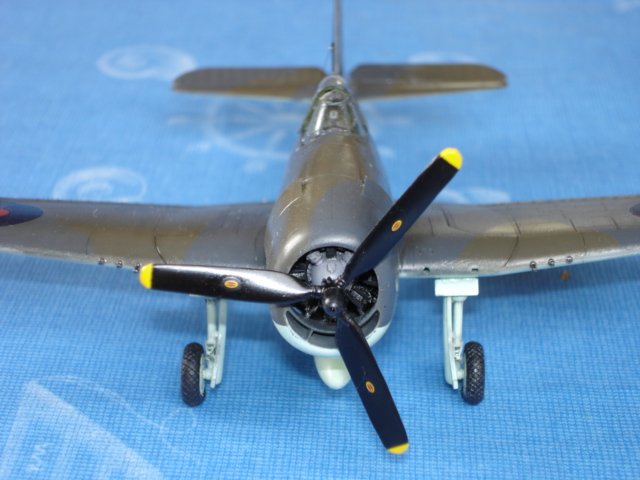

As I told you in my BAC Lightning article, I'm back with my Hasegawa Hellcat featuring raised panel lines. It's the fleet air arm Hellcat Mk I (English called it the F6F-3). Hasegawa offer the option to build two versions from 800 squadron birds : one colorful with D-Day stripes and red/brown parts and the other, only wearing its war paints i.e. its classic camo-scheme, that's the one (FN327) I chose to depict here. It's finished as an almost new aircraft which was delivered to the Royal Navy in mid 1943, just out of the factory, with a (still) glossy paint (it could be as well one of the planes you see nowadays in meetings, clean and shiny).

Check here the story of the Hellcat with the Royal Navy :http://www.fleetairarmarchive.net/Aircraft/Hellcat.htm

Click on images below to see larger images

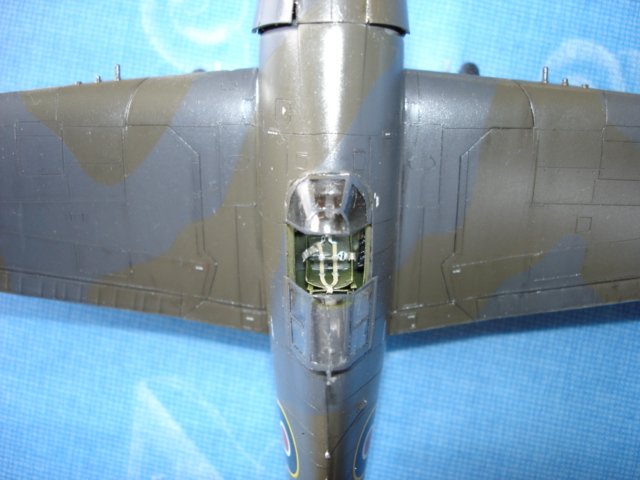

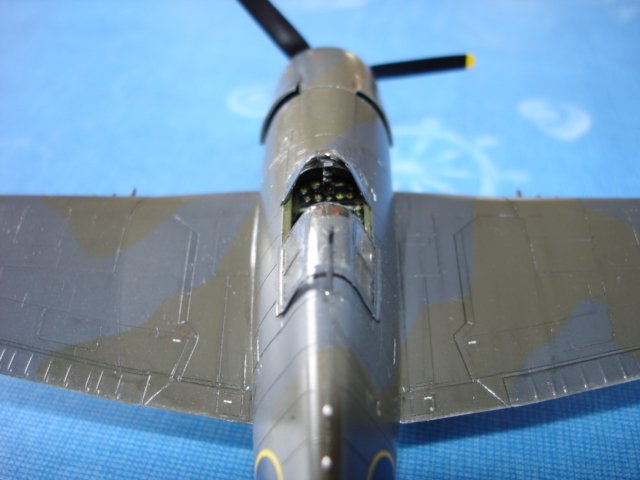

My goal on this kit was to train myself in the art of rescribing raised panel lines into engraved panel lines. For that, I used a needle and a Verlinden 1/72 scribing template. I processed like that : first, rescribe the lines (without wiping the raised lines), then sanding with 800, 1000 and 1200 sand paper, wash with soapy water and finally polish. I removed the excess of polish inside the newly engraved lines with the needle. Everything went well with this method, I'm glad with the result for a first time. OK there are some mistakes, the needle sometimes skid. The next one to be rescribed later will be a KP MiG-21R Fishbed H...

Some extra items helped me to get a nice model, like the unavoidable Aires P&W R2800 resin engine, also Eduard PE parts, a Squadron canopy, True Details resin wheels and some scratch like the brake cables (copper wires from electric cables) and the antenna wires (I love my girlfriend and her hair).

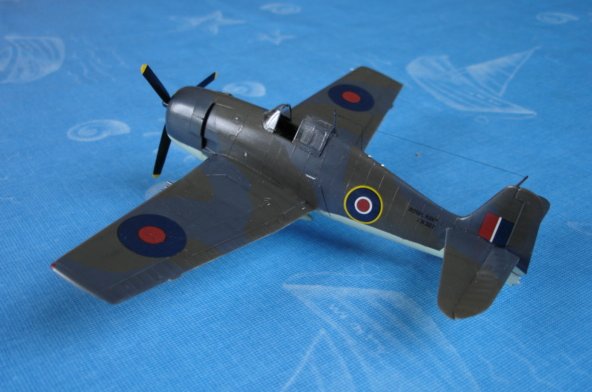

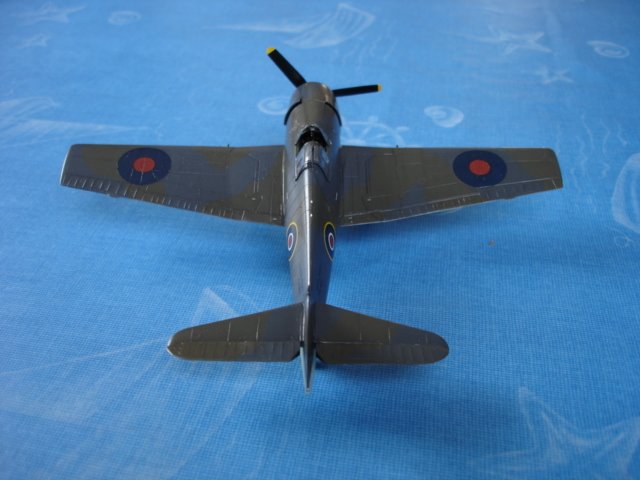

The « cat » is painted with Gunze & Humbrol colors : belly and intrados are « sky » Humbrol 23, camo-scheme is done with extra dark seagray (BS381C/640) Gunze H333 and a kind of dark gray-green obtained with a mix of Gunze field gray 1 H32 & olive drab 2 H78.

It's lightly weathered with some black juice in the panel lines and some darkened « sky » humbrol 23 on the intrados. Finish is glossy for a like-new plane which is very rare for the WW2 plane models.

Click on images below to see larger images

I was pretty scared before beginning with this rescribing technique but finally, it went well. All that is needed is patience, patience and... patience.

PS

Click on images below to see larger images

Photos and text © by PS
